XK-1325 CNC Router machinery

Share to:

1. Linear guide rail, large load capacity
2. German-made double-nut ball screw, high precision
3. Power off protection function

Availability:



Inquire

Model:
XK-1325
Brand:
Xunke
Function:
Cutting, Engraving
Applied Materials:
Metal, Acrylic, Wood, Stone, Other
Application industry:
Metal processing, Woodworking industry, Advertising industry, Furniture manufacturing

Product Description

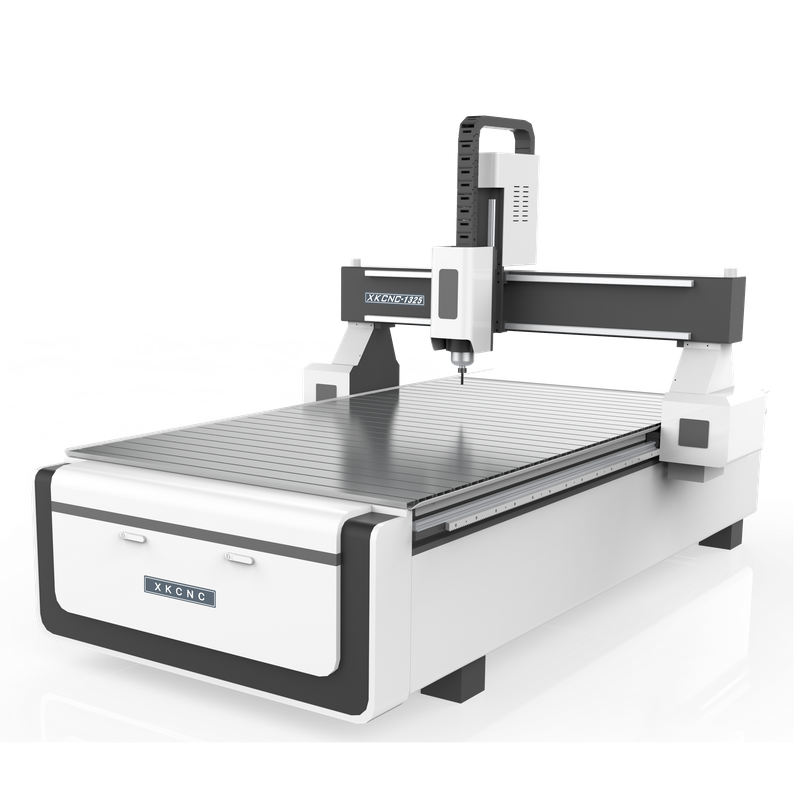

XK-1325 CNC Router

Video

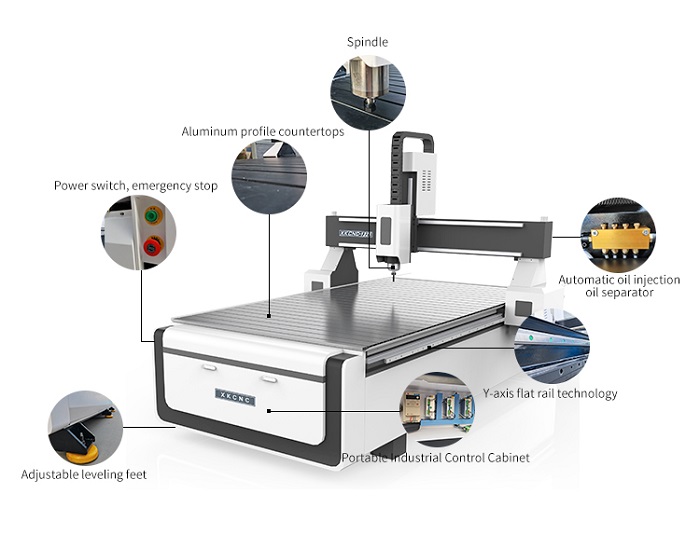

Features of XK-1325 CNC Router Machines

1.The materials it can process: Wood, MDF, PVC, Plywood, Acrylic, soft metal like Aluminum, copper, XK-1325 cnc router machine can work on many kinds of materials.

2.Industrial Welded, stress-relieved, and Aerospace milled structural steel tube frame construction.

3.Equipped with NC studio control system, it is easy to operate. Other control systems, such as DSP control, Mach 3, Syntec, are all available.

4.High Performance 20MM linear profile guide rails and bearings with Quad Rollers on all axis.

5.High quality water cooling spindle, it has lower noise and long lifespan.

6.High speed motor and driver, which can gaurantee the working quality

7.CAD/CAM Full License Software.

8.Easy to operate software.
9.Life-Time Tech Support via Phone, Email, and Remote Diagnostic!

10.Life-time Training and SabreNation University Access!

11.Industrial structural steel tube gantry uprights and Steel Cross bridge with Milled Mating Surfaces.

Parameters

No.	model	parameter	Unit
1.	Working area	2500x1300x200	mm
2.	X axis	1300	mm
3.	Y axis	2500	mm
4.	Z axis	200	mm
5.	X,Y positioning accuracy	±0.05/1000mm	mm
6.	X,Y repeat positioning accuracy	±0.03/1000mm	mm
7.	Max running speed	25	m/min
8.	Weight	850	Kg
9.	Table max load	400	Kg
10.	Machine size(LxWxH)	3200×2050×1750	mm
11.	Control system	NC studio
12.	Whole machine power	≥4.5	Kw
13.	Voltage	380v/220v 50HZ

Optional parts

Spindle	Water cooling spindle Air cooling spindle 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et
Dust collector	Single bag Double bags 2.2kw, 7.5kw, etc
Machine table	Vacuum table Aluminum profile and T-slot
Motor	step motor Leadshine motor Hybrid servo motor Servo moto
Working Size	13002500mm; 20004000mm; 2500*6000mm, etc
Extra parts	Vacuum table Dust collector CCD Camera two or multi-spindles

Samples

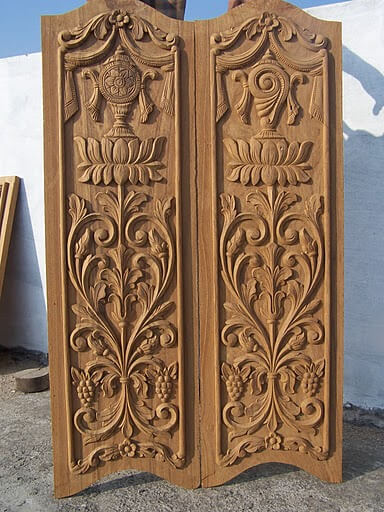

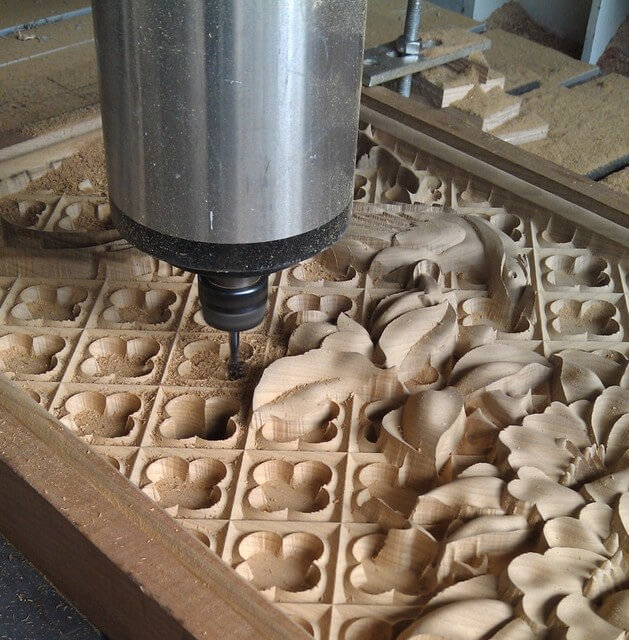

cnc wood carving wood carving machinery

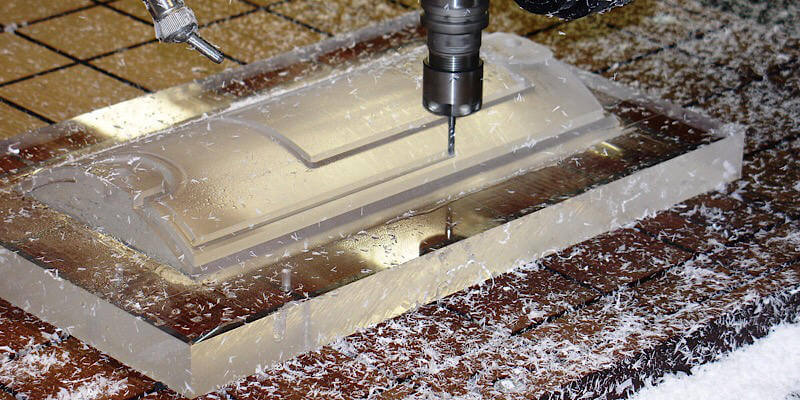

CNC-acrylic-feature-image

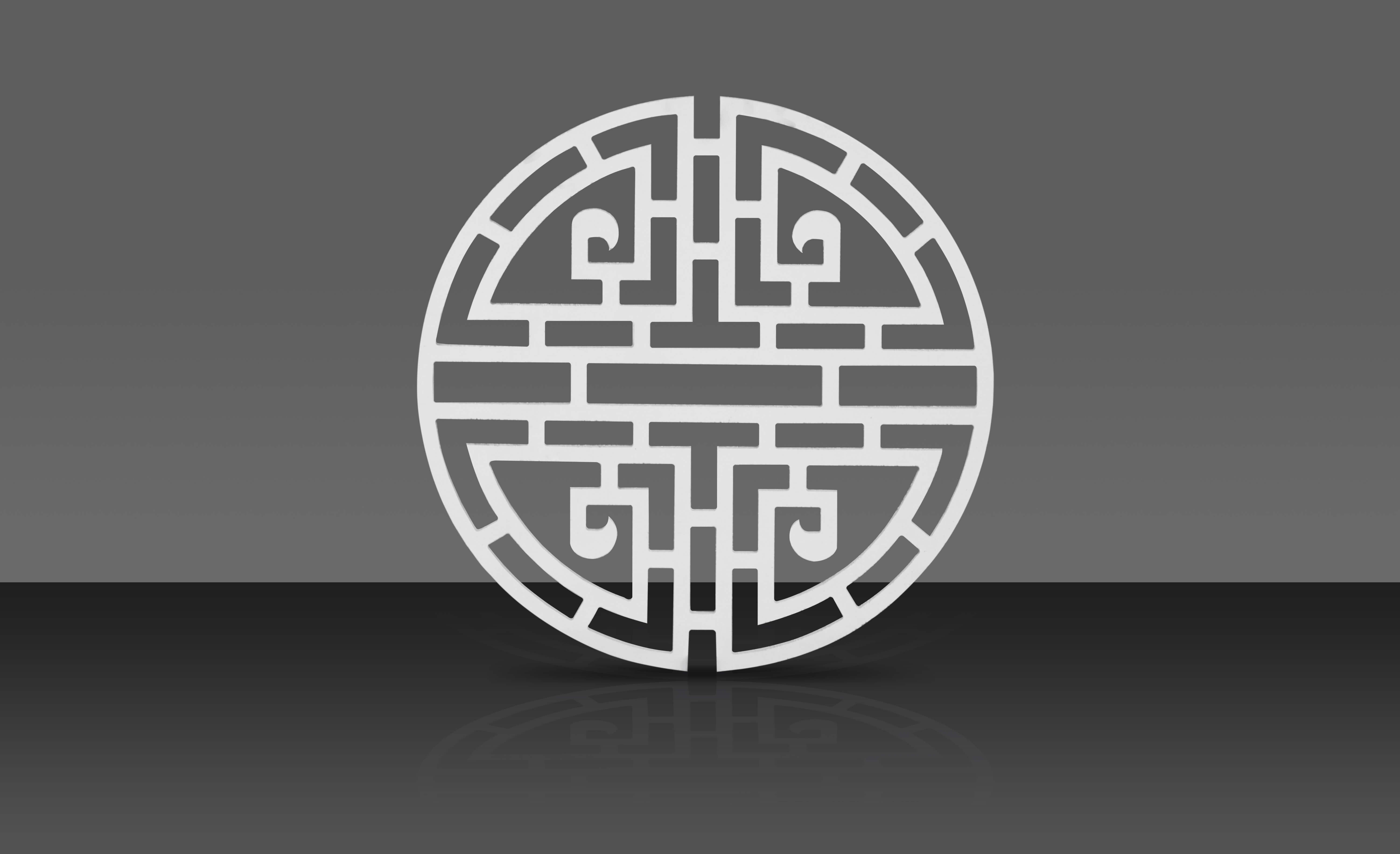

wooden furniture making PVC cutting

MDF

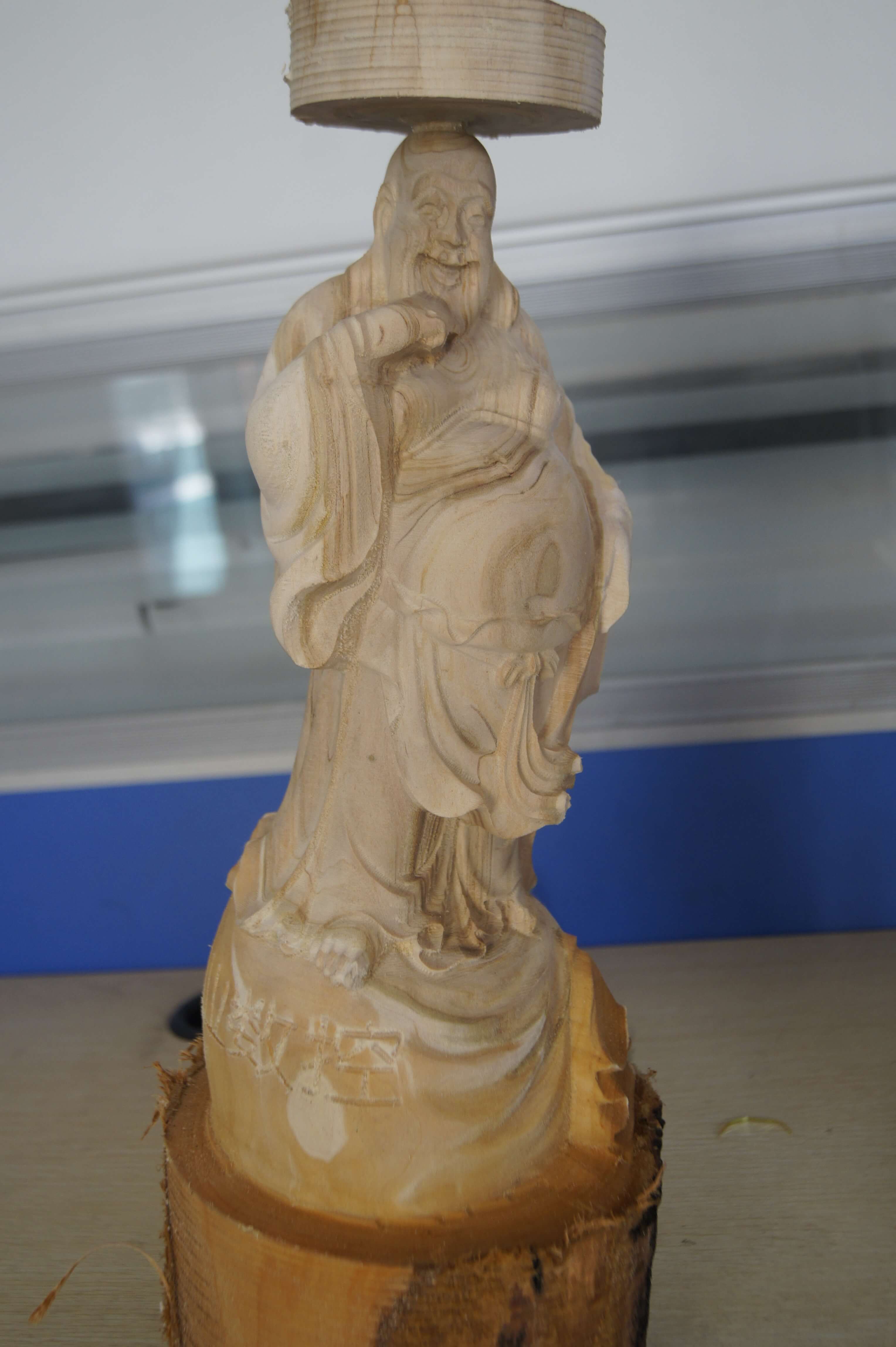

WOOD CARVING

LED WORDS (2)

Acrylic cutting

1578957009585_4

94f5d418f5737af23dc0cedc9c702f2

1111
